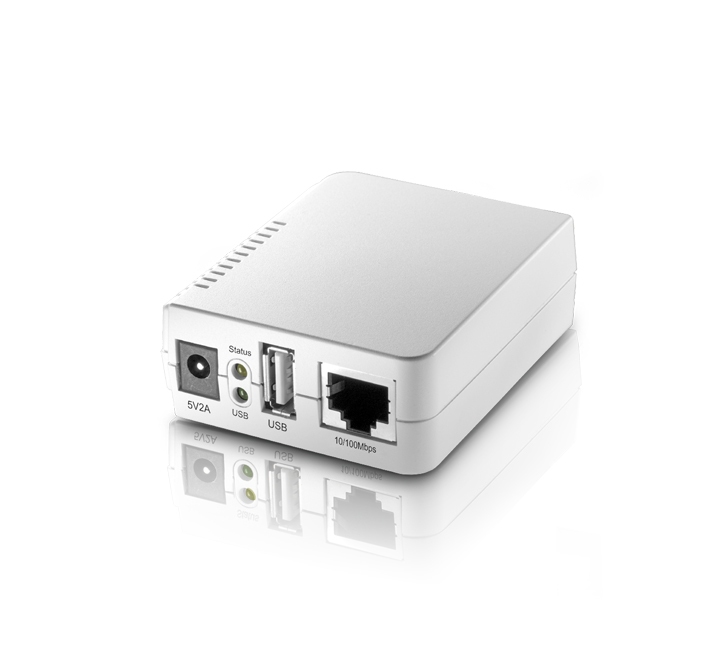

PS2101W-B
| Single USB2.0 Wireless Print Server |
CPU : MT7688AN
FLASH : 2 MBytes
RAM : 16 MBytes DDR2
LAN : 10/100 Mbps
Wireless : 802.11b/g/n
Interface : 1 USB 2.0 Hi-Speed
Power : 5V/1A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS

WIRELESS

USB PORT

TCP / IP

EASILY

10 / 100Mbps

Highly Compatible
Features
- The PS2101W-B wireless print server allows you to take the computer out of the loop while setting up a printing network.
- This Wireless Print Server lets you share USB printer with multiple users simultaneously over a WiFi network, or a wired LAN connection.
- It is an ideal network printing solution for offices that require printer sharing over the same network.
- And allows you to take the computer out of the loop while setting up a printing network.

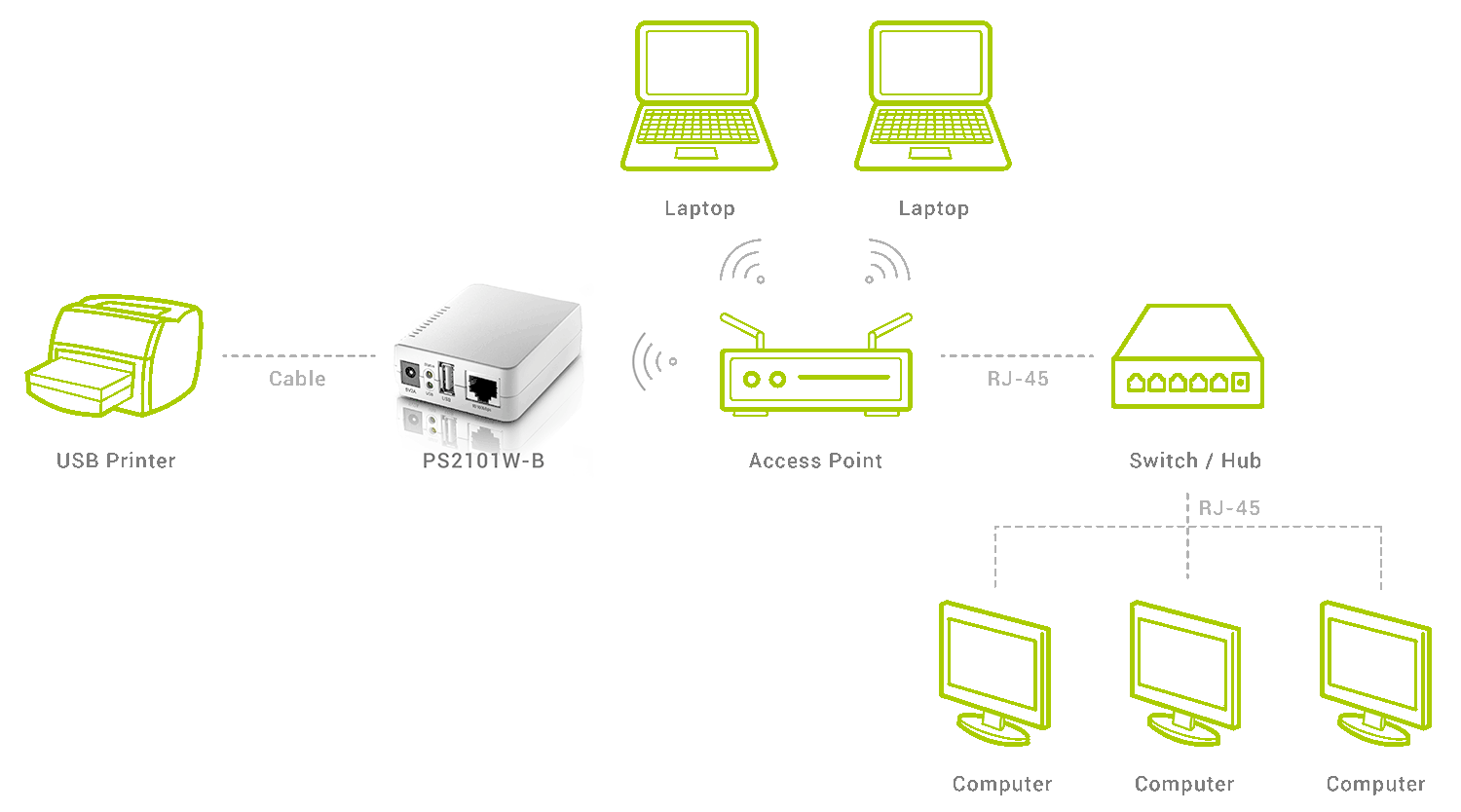

Application Scenario

Specification
Hardware
CPU | MT7688AN : Embedded MIPS24KEc (575/580 MHz) with 64 KB ICache and 32 KB D-Cache |
Reset / Load Factory default button | Yes,1 Botton |
System Memory | 16-bit DDR2 16Mbytes |
SPI FLASH Memory | 2 Mbytes |
USB Port | A type USB2.0 High speed standard compliant host controller |
Ethernet 10/100 | 10/100Mbps Compliant with IEEE 802.3/802.3u standard, 10/100Mbps auto-sensing, RJ-45 (UTP) connector |
Wireless | 802.11n with internal 3dBi antenna (iPex to FPWB) |
WPS Button | Yes, 1 Button |
Status/Power LED indicator | Orange On : Power on Off : Power off Networking Link : Blinking |
Wireless Network indicator | Orange On : Linking Off : Turn off Blinking : Data transmitting |
USB LED | On : Connected to USB2.0 Printer Off : Disconnect |
Power supply covering all major regions | DC 5V / 1A (switching, mini-sized) |
Wireless Encryption | MTK 7688AN IEEE 802.11b/g/n WEP(64/128bit), WPA/WPA2-PSK(TKIP,AES) |
Software
Network Operating System Support | Windows 9X/Me/NT/2000, XP-32/64, Vista-32/64 Windows 7-32/64, Windows 8/10 Unix/Linux, Mac OS(8.1以上) Netware(Bindery/NDS) |
Printing Protocol Support | TCP/IP, IPX, NetBEUI, AppleTalk, IPP, LPR, RAW TCP, SMB over TCP/IP |
Internet Printing Protocol (IPP) Support | Yes |
DHCP client Support | Yes |
Management | 1. Web Interface 2. Windows-Based setup program |
Software Upgradeable | 1. Web interface 2. Windows-based Setup Program 3. TFTP |
Windows Print Monitor Technology | Yes |
SNMP & HP Web JetAdmin Support | Yes |
Email Alert | Yes |
Job Log | Yes |
Self Test Page | Yes |
Power On Load Default | Yes |
WPS | Yes |
Wireless Security | WEP(64/128bit), WPA/WPA2-PSK(TKIP,AES) |
