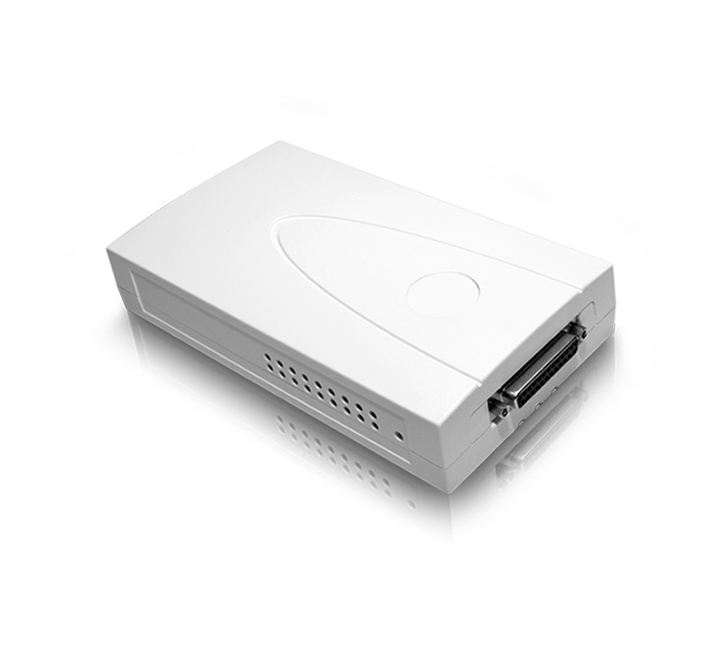

PUN2300
| USB & Parallel Print Server |
CPU : RDC2886
FLASH : 1 MBytes
RAM : 2 MBytes DDR2
LAN : 10/100 Mbps
Interface : 2 USB 2.0 Hi-Speed, 1 Parallel Port
Power : 5V/2A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS

PARALLEL PORT

USB PORT

TCP / IP

EASILY

10 / 100Mbps

Highly Compatible
Features
- 2-port USB2.0 & 1-port Parallel Print server, Multi-Port print server for network print sharing.
- This Multi Port print server provides simultaneous connectivity to two USB and one Parallel printers.
- It is an ideal network printing solution for offices that require printer sharing over the same network.
- And also, it is a multi-port Fast Ethernet Print Server and provides network printer sharing for both USB and Parallel printers.

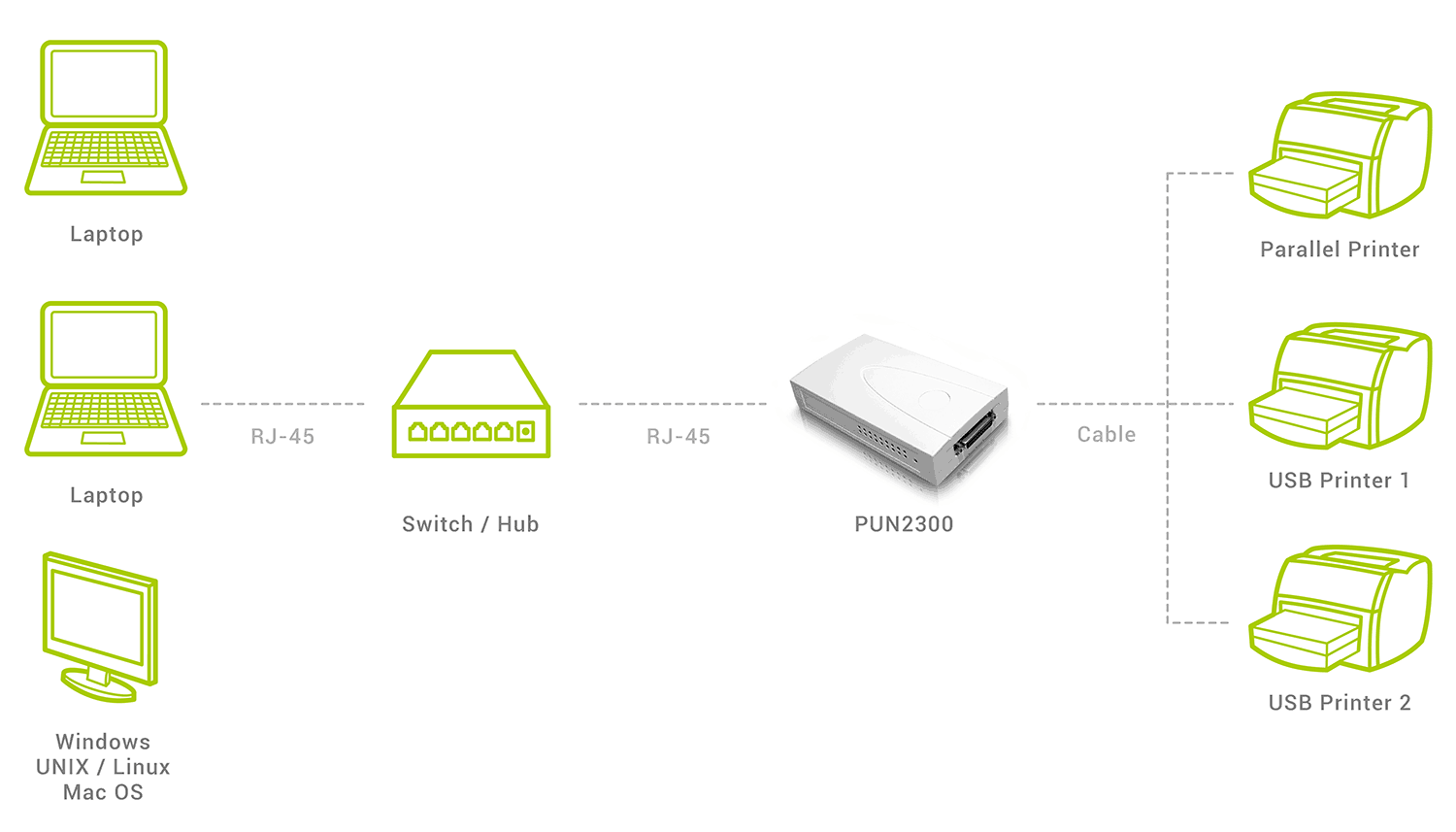

Application Scenario

Specification
Hardware
CPU | RDC 2886 |
System Memory | 2Mbytes SDRAM |
FLASH Memory | 1 Mbytes |
Parallel Port | 1 DB-25 pin female Centronics port |
USB Port | 2 USB 2.0 Hi-speed |
LAN Port | 10/100Mbps auto-sensing, RJ-45 (UTP) connector |
Reset Button | Yes (Reset / Power On Load Defaults) |
Power LED | Green |
Status LED | Red |
LAN LED | Green / Yellow 10M : Orange 100M : Green |
Parallel Port LED | Green |
USB 1 LED | Green for Hi-speed Orange for other |
USB 2 LED | Green for Hi-speed Orange for other |
Power supply | 5VDC, 2A (Switching) |
Weight | 255g (Device Only) |
Temperature | Operating : 0 ~ 50 ℃, Storage : -5 ~ 65 ℃ |
Humidity | Operating : 0 ~ 70%, Storage : 0 ~ 80% |
Software
Network Operating System Support | Windows 9X/Me/NT/2000, XP-32/64, Vista-32/64 Windows 7-32/64, Windows 8/10 Unix/Linux, Mac OS(8.1 or higher) Netware(Bindery/NDS) |
Printing Protocol Support | TCP/IP, IPX, NetBEUI, AppleTalk, IPP, LPR, RAW TCP, SMB over TCP/IP |
Internet Printing Protocol (IPP) Support | Yes |
DHCP client Support | Yes |
Management | 1. Web Interface 2. Windows-Based setup program |
Firmware Upgradeable | 1. Web interface 2. Windows-based Setup Program 3. TFTP |
Windows Print Monitor Technology | Yes |
SNMP & HP Web JetAdmin Support | Yes |
Email Alert Support | Yes |
Job Log | Yes |
Self Test Page | Yes |
Power On Load Default | Yes |
