PAN1001B
| Single Parallel Port Print Server |
CPU : ARM 7
FLASH : 1 MBytes
RAM : 2 MBytes DDR2
LAN : 10/100 Mbps
Interface : 1 Parallel Port
Power : 5V/1A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS, Bonjour
PARALLEL PORT
10 / 100Mbps
TCP / IP
EASILY
Highly Compatible
Features
- The PAN1001B print server allows you to take the computer out of the loop while setting up a printing network.
- All that is needed is to connect the PAN1001B to a printer via the parallel port, connect the print server to your LAN, and you will be able to access your printer from any computer on the LAN.
- This parallel port print server is compatible with most majorities of printers on the market.
- The PAN1001B Ethernet to Parallel Network Print Server lets you convert a standard parallel printer into a shared network printer over a 10/100Mbps network.
- And allows multiple computers to share one parallel printer on the network.

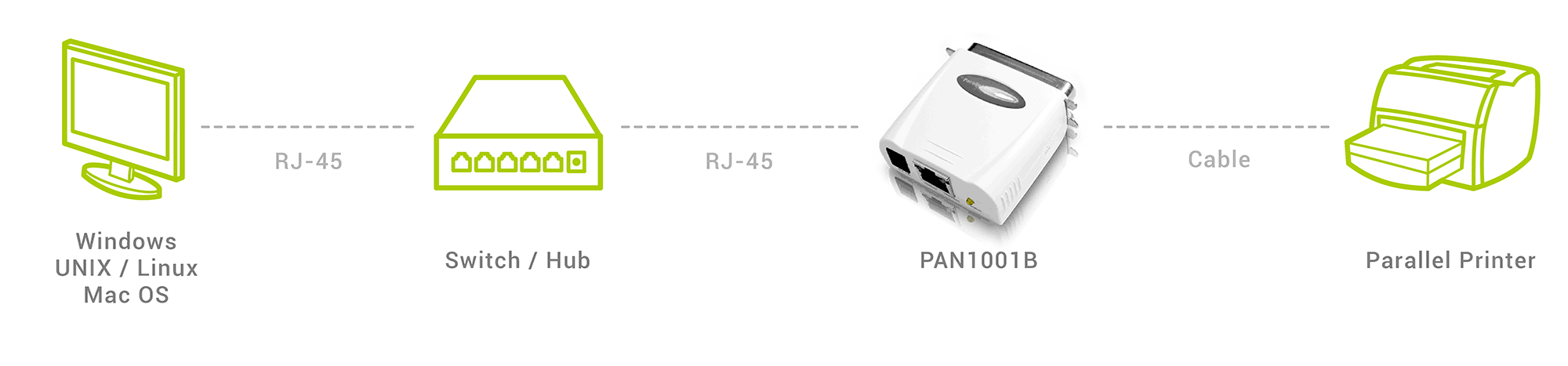

Application Scenario
Specification
Hardware
| CPU | ARM7-based SoC |
| Reset / Load Factory default button | Yes,1 Botton |
| System Memory | 2Mbytes SDRAM |
| FLASH Memory | 1 Mbytes |
| Parallel Port | 1 DB-36 pin male Centronics port |
| LAN Port | 1 10/100Mbps auto-sensing, RJ-45 (UTP) connector |
| Status/Power LED indicator | Orange On : Power on Off : Power off |
| Power / Status | 1 Yellow |
| LAN 10/100M | 2 Green / Yellow 10M : Yellow 100M : Green |
| Power supply | 5VDC, 1A (Switching) |
| Weight | 50.6g (Device Only) |
| Temperature | Operating : 0 ~ 50 ℃, Storage : -5 ~ 65 ℃ |
| Humidity | Operating : 0 ~ 70%, Storage : 0 ~ 80% |
Software
| Network Operating System Support | Windows 9X/Me/NT/2000, XP-32/64, Vista-32/64 Windows 7-32/64, Windows 8/10 Unix/Linux, Mac OS(8.1 or higher) Netware(Bindery/NDS) |
| Printing Protocol Support | TCP/IP, IPX, NetBEUI, AppleTalk, IPP, LPR, RAW TCP, SMB over TCP/IP |
| Internet Printing Protocol (IPP) Support | Yes |
| Rendezvous(Bonjour) Support | Yes |
| DHCP client Support | Yes |
| Management | 1. Web Interface 2. Windows-Based setup program |
| Firmware Upgradeable | 1. Web interface 2. Windows-based Setup Program 3. TFTP |
| Windows Print Monitor Technology | Yes |
| SNMP & HP Web JetAdmin Support | Yes |
| Email Alert Support | Yes |
| Job Log | Yes |
| Self Test Page | Yes |
| Power On Load Default | Yes |
