PAN3001

| 3-Parallel Ports Print Server |

CPU : ARM 7
FLASH : 1 MBytes
RAM : 2 MBytes
LAN : 10/100 Mbps
Interface : 3 Parallel Port
Power : 5V/2A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS

PARALLEL PORT

10 / 100Mbps

TCP / IP

EASILY

Highly Compatible

Features

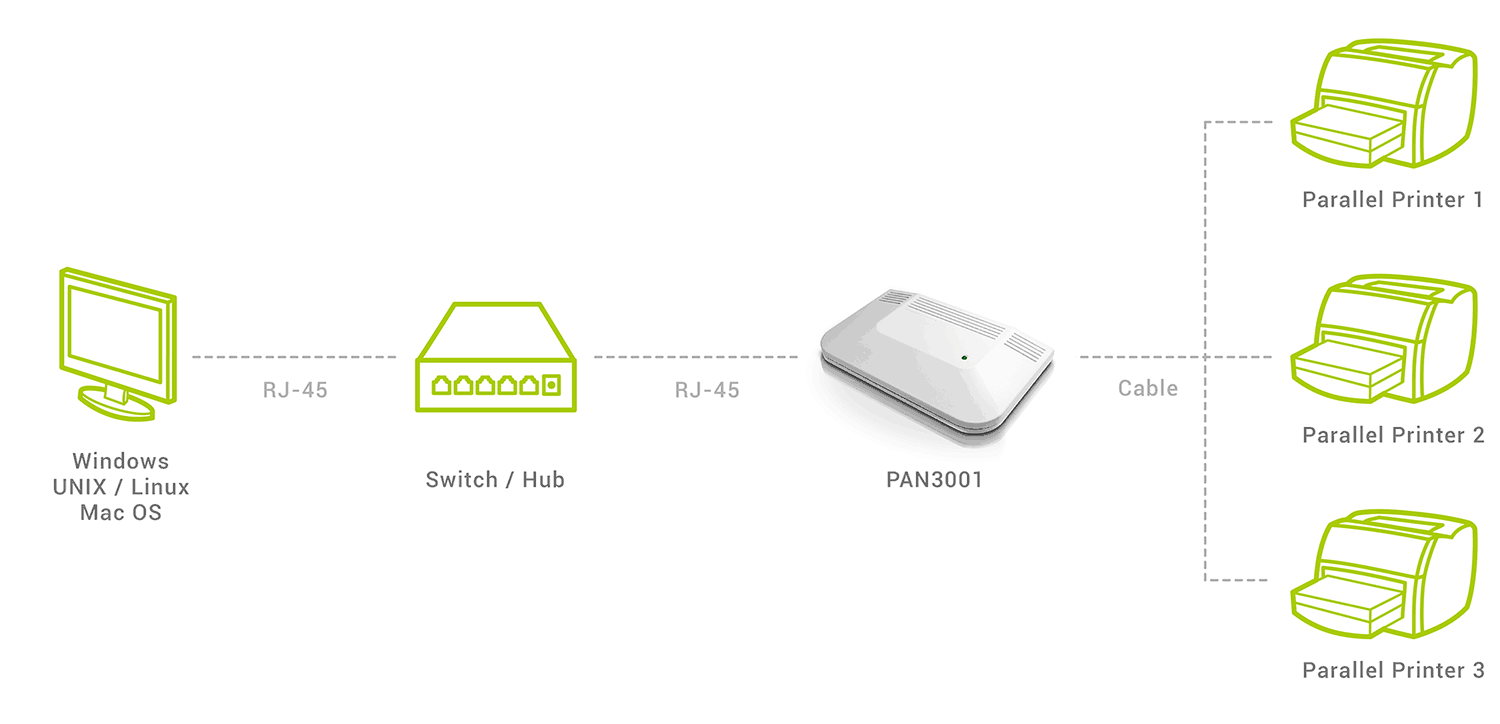

Application Scenario

Specification

CPUHigh-performance RISC-cored SoC processor
System Memory2Mbytes SDRAM
FLASH Memory1 Mbytes
Parallel Port3 DB-25 pin female Centronics port
LAN Port10/100Mbps auto-sensing, RJ-45 (UTP) connector
Reset ButtonYes
Power LEDRed
On : Power on
Off : Power off
Status LEDGreen
1. When powered on, it flashes for the P.O.S.T
2. When being upgraded, if flashes quickly
LAN LEDGreen
On : LAN link
Off : LAN not link
Power supply5VDC, 2A (Switching)
Weight307g (Device Only)
TemperatureOperating : 0 ~ 50 ℃, Storage : -5 ~ 65 ℃
HumidityOperating : 0 ~ 70%, Storage : 0 ~ 80%
Network Operating System SupportWindows 9X/Me/NT/2000, XP-32/64, Vista-32/64
Windows 7-32/64, Windows 8/10
Unix/Linux,
Mac OS(8.1 or higher)
Netware(Bindery/NDS)
Printing Protocol SupportTCP/IP, IPX, NetBEUI, AppleTalk, IPP, LPR, RAW TCP, SMB over TCP/IP
Internet Printing Protocol (IPP) SupportYes
DHCP client SupportYes
Management1. Web Interface
2. Windows-Based setup program
Firmware Upgradeable1. Web interface
2. Windows-based Setup Program
3. TFTP
Windows Print Monitor TechnologyYes
SNMP & HP Web JetAdmin SupportYes
Email Alert SupportYes
Job LogYes
Self Test PageYes
Power On Load DefaultYes
