PS2101-C
| Single USB2.0 Port Print Server |
CPU : MT7688AN
FLASH : 2 MBytes
RAM : 16 MBytes DDR2
LAN : 10/100 Mbps
Interface : 1 USB 2.0 Hi-Speed
Power : 5V/1A
OS Support : Windows, Unix/Linux, MAC, Netware
Print : LPR, RAW TCP, IPP, SMB, AppleTalk, Print Monitor, Netware Bindery/NDS
USB PORT
10 / 100Mbps
TCP / IP
EASILY
Highly Compatible
Features
- Easily connect your USB printer to a network.
- The PS2101-C print server allows you to take the computer out of the loop while setting up a printing network.
- All that is needed is to connect the PS2101-C to a printer via the USB port, connect the print server to your LAN, and you will be able to access your printer from any computer on the LAN.
- PS2101-C USB2.0 print server is compatible with most majorities of printers on the market.
- High-speed microprocessor and USB2.0 compliant printing port make processing jobs faster.
- Allows multiple computers to share one USB printer on the network.
- The PS2101-C print server is an ideal network printing solution for offices that require printer sharing over the same network.
- This print server is equipped with a 10/100Mbps autosensing Ethernet port and a USB 2.0 port that connected to USB printer.

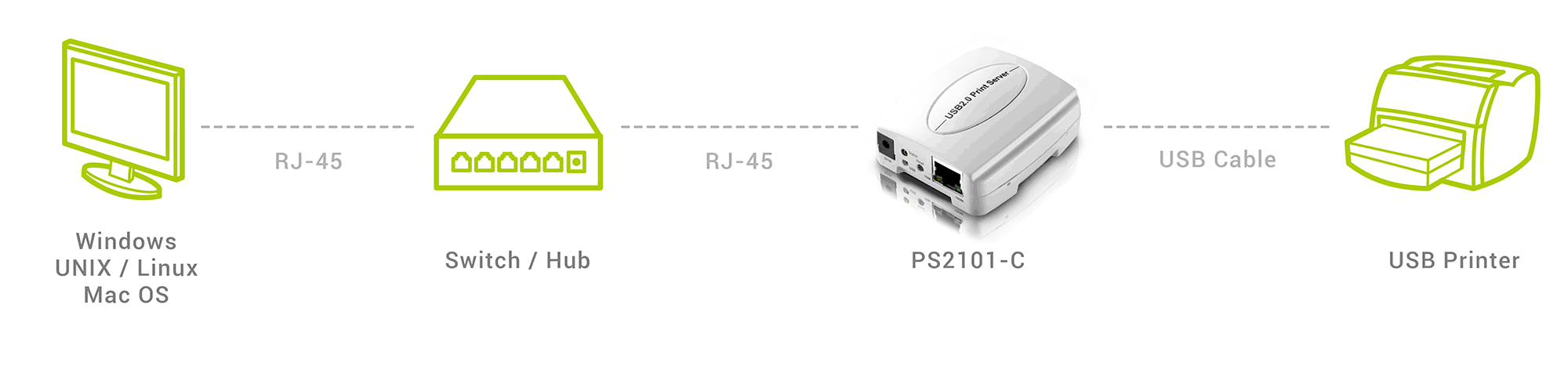

Application Scenario
Specification
Hardware
| CPU | MT7688AN : Embedded MIPS24KEc (575/580 MHz) with 64 KB ICache and 32 KB D-Cache |
| Reset / Load Factory default button | Yes,1 Botton |
| System Memory | 16-bit DDR2 16Mbytes |
| SPI FLASH Memory | 2 Mbytes |
| USB Port | A type USB2.0 High speed standard compliant host controller |
| Ethernet 10/100 | 10/100Mbps Compliant with IEEE 802.3/802.3u standard, 10/100Mbps auto-sensing, RJ-45 (UTP) connector |
| Status/Power LED indicator | Orange On : Power on Off : Power off |
| Network indicator on Lan Port | Yellow / Green Yellow On : 10Mbos Green On : 100Mbps |
| USB LED | On : Connected to USB2.0 Printer Off : Disconnect |
| Power supply covering all major regions | DC 5V / 1A (switching, mini-sized) |
Software
| Network Operating System Support | Windows 9X/Me/NT/2000, XP-32/64, Vista-32/64 Windows 7-32/64, Windows 8/10 Unix/Linux, Mac OS(8.1以上) Netware(Bindery/NDS) |
| Printing Protocol Support | TCP/IP, IPX, NetBEUI, AppleTalk, IPP, LPR, RAW TCP, SMB over TCP/IP |
| Internet Printing Protocol (IPP) Support | Yes |
| DHCP client Support | Yes |
| Management | 1. Web Interface 2. Windows-Based setup program |
| Software Upgradeable | 1. Web interface 2. Windows-based Setup Program 3. TFTP |
| Windows Print Monitor Technology | Yes |
| SNMP & HP Web JetAdmin Support | Yes |
| Email Alert | Yes |
| Job Log | Yes |
| Self Test Page | Yes |
| Power On Load Default | Yes |
