US-2402
| 4-Ports USB 2.0 Server |
CPU : ES3868
LAN : 10/100/1000 Mbps Giga LAN
Interface : 4-USB 2.0 Hi-Speed
Power : 5V/2A
OS Support : WinXP/Vista/7/8/10
USB Device Support : Printer, MFP, Scanner, Storage ….
USB PORT
MFP & STORAGE SERVER SUPPORT
TCP / IP
10 / 100Mbps
EASILY
Highly Compatible
Features
- The US-2402 is ideal for sharing USB connected devices across a home or office network.
- The device is compatible with the majority of printers and multi-function printers on the market and allows for seamless sharing and management of those devices with network connected computers.
- Also can positioned as MFP (Multifunction Printer) server or storage server.
- It's designed to connect your USB printers, MFP, and USB storage devices to your network.

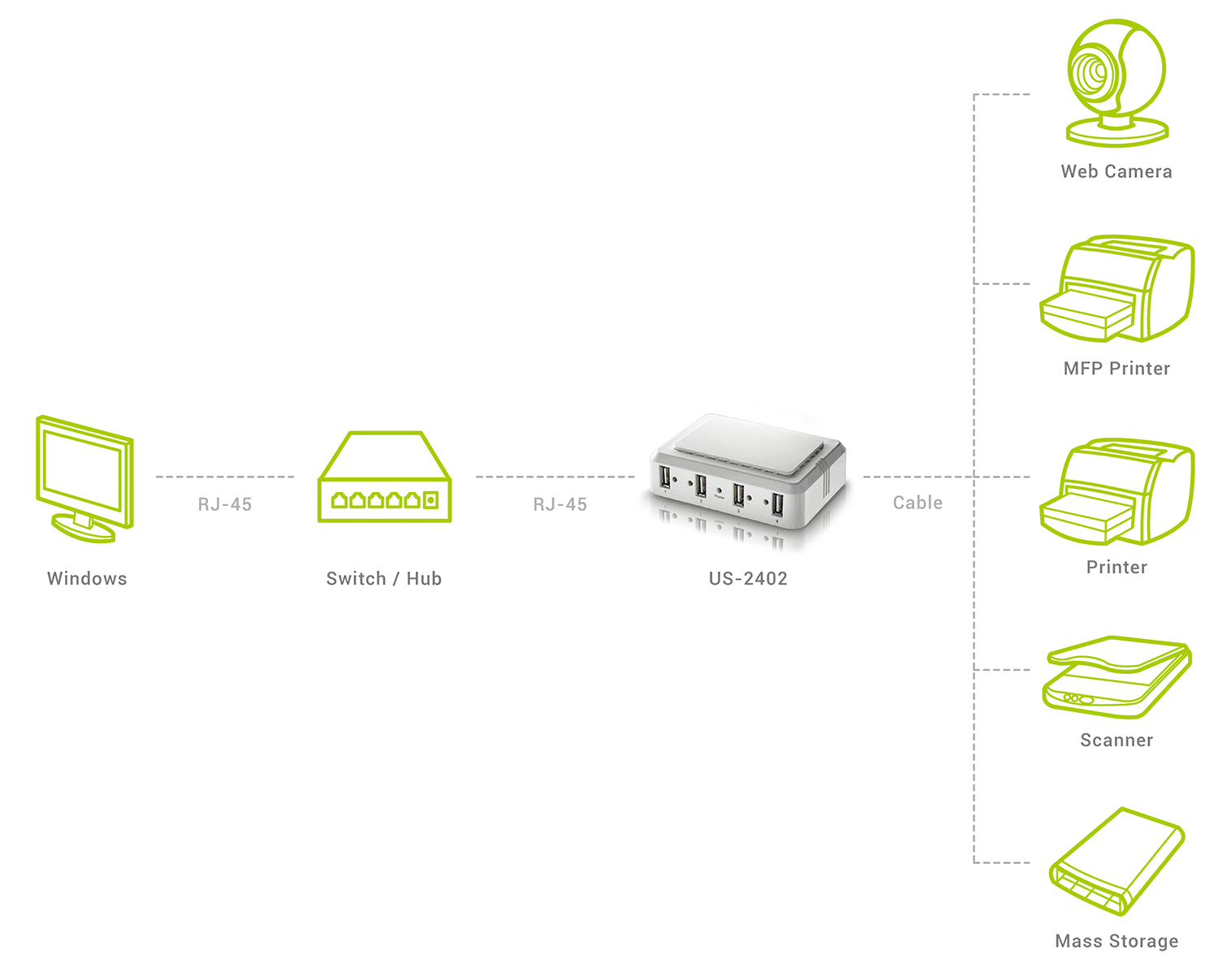

Application Scenario
Specification
Hardware
| CPU | E3868 |
| USB Port | 4 USB 2.0 High-speed port |
| LAN Port | 10/100/1000 Mbps, auto-sensing, auto-crossover |
| Reset Button | Yes |
| Power Adapter | 5V/2A, Switching |
| Power LED | Blue On : Power on Off : Power off |
| LAN LED | Green / Orange 10M : Orange 100M : Green |
| USB LED | Green On : USB device connected Off : USB device not connected |
| Weight | 112g (device only) |
| Temperature | Operating : 0 ~ 50°C ; Stogare : -5 ~ 65°C |
| Humidity | Operating : 0 ~ 70% ; Stogare : 0 ~ 80% |
Software
| Network Operating System Support | Windows XP/Vista/7/8/10 Linux/Mac (print server via LPR) |
| Network Protocol | Proprietary virtual USB protocol LPR |
| DHCP client Support | Yes |
| Management | 1. Web Interface 2. Windows-Based setup program |
| Firmware Upgradeable | 1. Web interface 2. Windows-based Setup Program |
| USB Devices Support | Printer, MFP, Scanner, Mass Storage |
| MFP Features Support | Print, Scan, Copy, Fax and Card reader |
| Windows Scan Utility (WIA) Support | Yes |
